| Basic concept of water footprint |
The product water footprint refers to the amount of fresh water consumed per unit product. It’s a simple quantitative formula as follows:
product water footprint = green water footprint + blue water footprint + gray water footprint
|
item |
definition |
formula |
green water footprint |
Rain, condensation water use |
(During inventory the total amount x ratio of the distribution ) / product number |
blue water footprint |
surface or groundwater use |
(During inventory the total amount x ratio of the distribution ) / product number |
gray water footprint |
The total amount of effluent when diluted to meet the environmental standards
|
{During inventory the total amount of waste water x (target concentration of pollution / environmental water quality standard concentration) x ratio of the distribution} / product number |
|

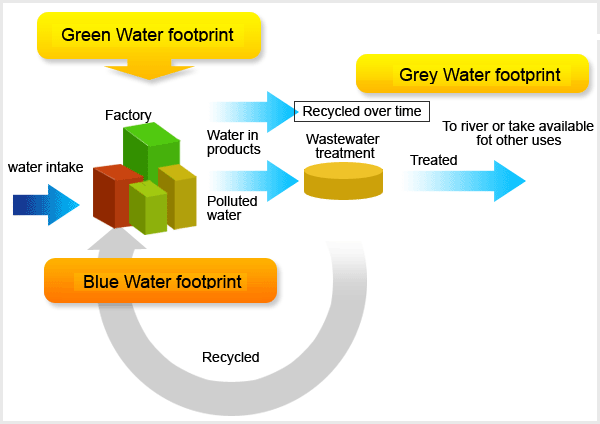

(Diagram of water footprint measurement)
(Source: Water Resources Agency Ministry of Economic Affairs 2011 Water footprint advocacy activities)
|
| The process of water footprint implementation in CSC: |
On behalf of the company the Utilities Department was passed by the Ministry of Economic Affairs Industrial Development Bureau for 2011 of water footprint inventory and verification of operations. We have selected the First Hot Rolling Mill products as an illustrative case. In the future when the First Hot Rolling Mill products’ footprint verification is finished it will be extended to other products to promote more efficient management of water resources for the company in the future. The water footprint inventory and verified operation is scheduled to be completed by December 2011.
|
| First Hot Rolling Mill products： |
| |
The status of production and water use in CSC |
| |
The status of production： |
| |
Main Products |
Annual production (ton) |
01、plates products |
1 million ton |
02、rods and bars products |
1.77 million ton |
03、hot rolled products |
7.9 million ton |
04、cold rolled products |
1.8 million ton |
05、electro-galvanized products |
0.15 million ton
|
|
| |
|
| |
Water footprint promotion in the CSC utilities |
| |
 |
| |
|
| |
(三)#1 Hot-Rolled Mill Products and Water Use |
| |
#1 Hot-Rolled Mill Products
The annual production of #1hot rolled coil products is 3.41 million tones.
The main exporter is China, Japan, Malaysia.
The first layer of raw materials supplier is #1 BOF Slab CC Plant: 51 tons per year, and
#2 BOF Slab CC Plant: 290 tons per year. |
| |
|
| |

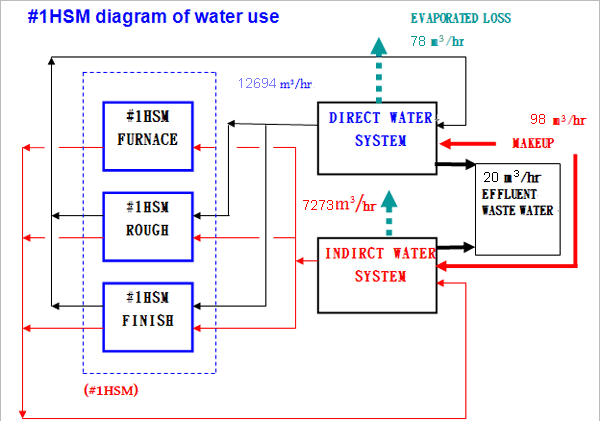

The diagram of water use |
| |
|
| |
|
|
