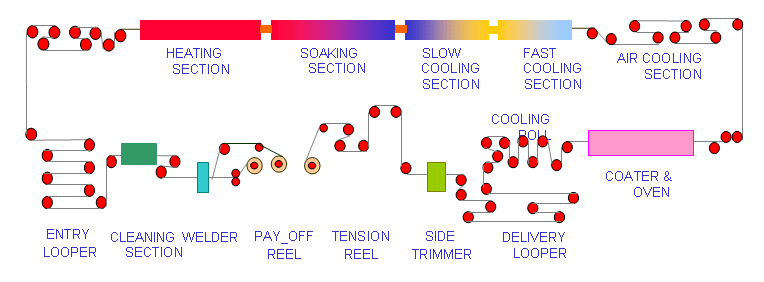

Horizontal Annealing & Coating Line (ACL) No.1 Annealing & Coating Line (1ACL) No.2 Horizontal Annealing & Coating Line (2ACL) No.1 Annealing & Coating Line includes cleaning、 annealing、coating and trimming processes. Cold rolled coils are charged into two pay off reels on the entry side. They are welded to become a continuous strip by the welder. It is annealed in a horizontal continuous furnace including heating, soaking and cooling sections. The proper heating cycle is given according to steel grade, which provides the strip with necessary core-loss. Then the strip is performed with different insulation paint coating material, different coating thickness, divided into specified weights, and packaged according to the customer’s requirement.
