| No.2 Continuous Annealing Line (#3 CAL) |
No.1 Continuous Annealing Line (#1 CAL) No.2 Continuous Annealing Line (#2 CAL) No.3 Continuous Annealing Line (#3 CAL)

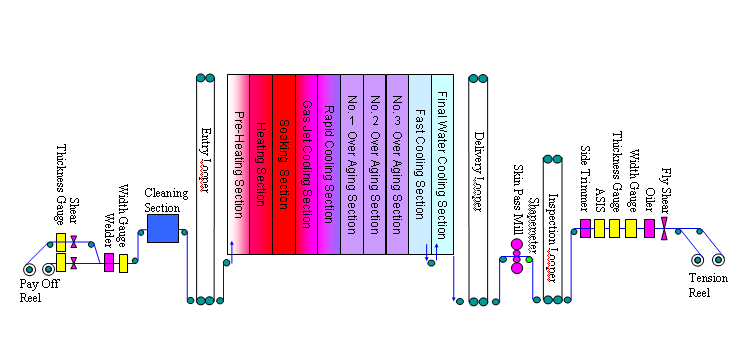

Cold-rolled coils are fed into two pay off reels on the entry side and cleaned off rolling oil and others at cleaning section after they are jointed to each other by welder. Then the coils are heated to the annealing temperature and soaked in furnaces, and quenched in rapid cooling section after passing through gas jet cooling section. After receiving over aging treatment in over aging section, the coils are temper-rolled so that their surface roughness is finished and shapes conditioned. On the delivery side, the coils are coated with rust preventive oil after their surfaces and dimensions are inspected, and they are divided into specified weight according to the customer requirement.
